LED layout software for sign makers

Your sign, engineered.
Not guessed.

Artwork in. Modules placed. Parts list out.

Start designing freeSee it in action ↓

Free · No credit card · PDF & vector in

FIG. 1 — THE ACTUAL APP
app.mapmysign.com

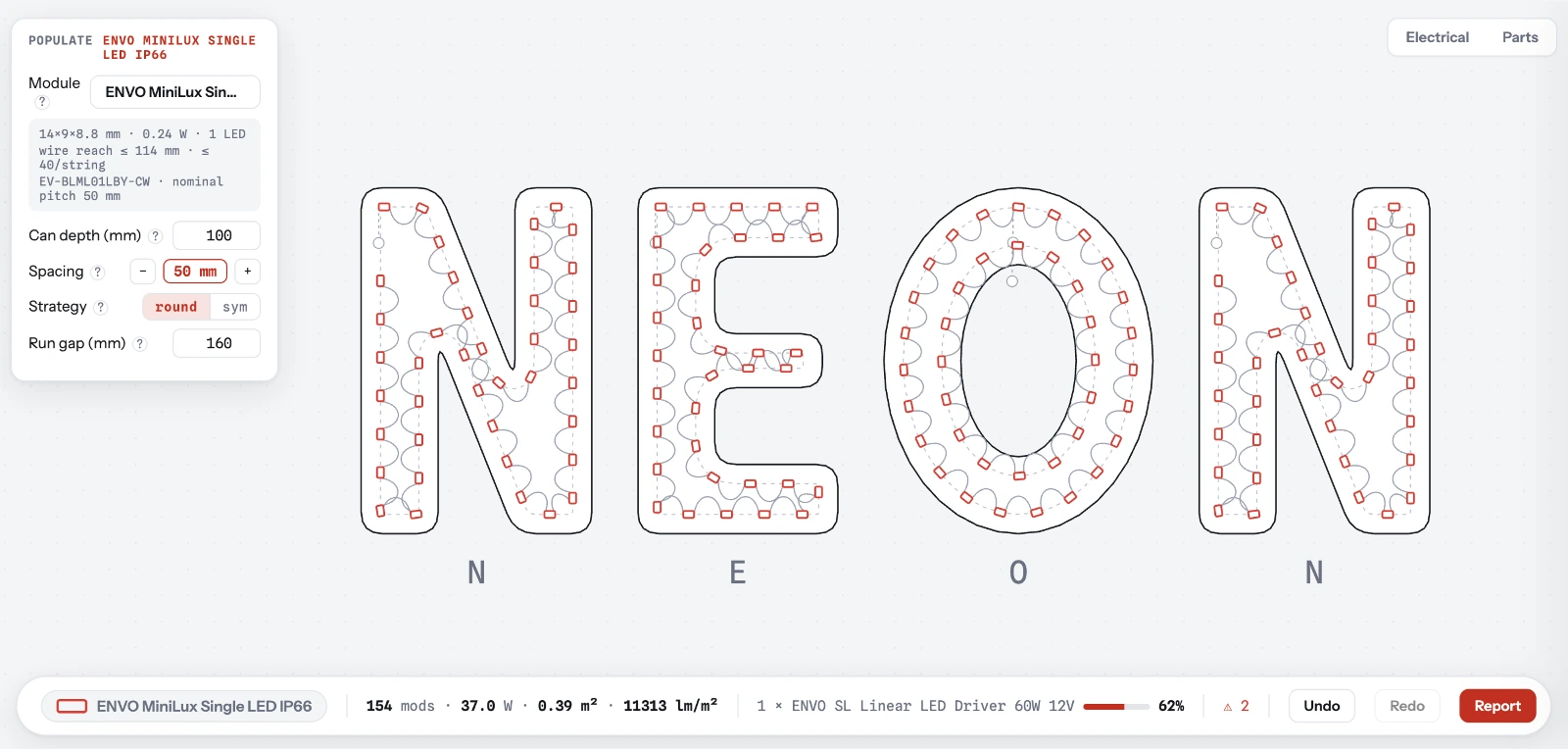

The MapMySign editor: a “NEON” channel-letter sign with LED modules auto-placed and wired along every letter, the driver sized, and the electrical load checked.Open the designer →
THE LAYOUT ENGINE BEHINDPOWER SUPPLY MALLWELLFORCESENVO LED

Artwork in. Parts list out.

⬆

01  Upload artwork

PDF or vector. Letters detected.

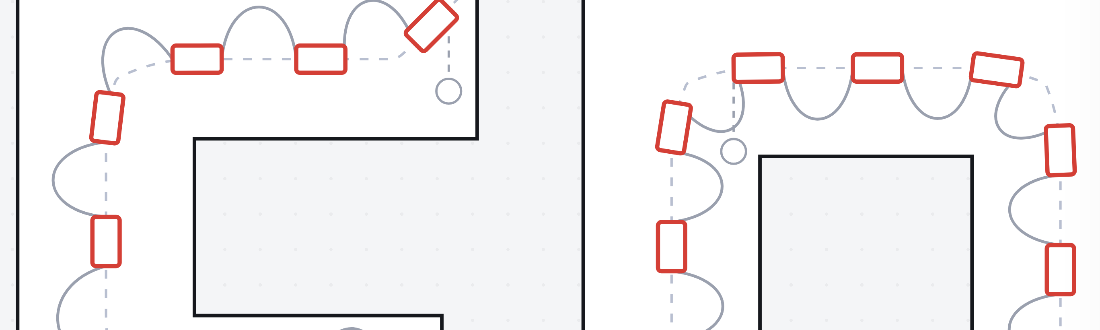

LED modules auto-placed and wired along a channel-letter stroke in the MapMySign editor

02  Modules place themselves

Spacing, counts, driver — checked.

96× modules · 2× drivers · 1 sheetExport parts list →

03  Export the parts list

A clean BOM, ready for your supplier.

Bring your own products

Your modules.
Your power supplies.
Your layouts.

Import your own LED modules and drivers — with real spacing, wattage and pricing. MapMySign lays out signs using your catalog, so every quote sells your product, not someone else's.

＋ Import a module＋ Import a power supplyCSV / spec sheet
MapMySignCatalog
MY MODULES ＋ IMPORT
Acme MicroLED 3W
3.0 W · 160 lm · 2.9″ pitch
YOURS
Acme MicroLED 1.5W
1.5 W · 95 lm · 2.1″ pitch
YOURS
＋ Import module (CSV / spec)
POWER YOURS
Acme PS-6060 W
Load71% ✓

Built for real sign work

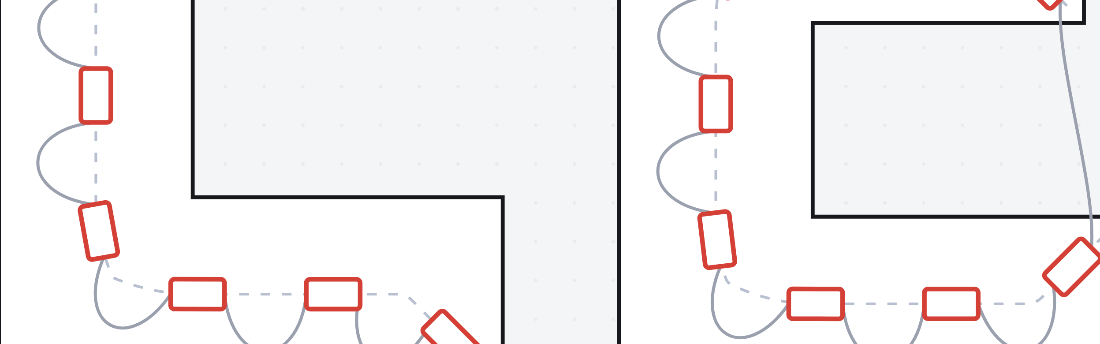

LED modules evenly placed around a channel-letter curve, spacing and corner clearance checked in the MapMySign editor

Even glow, zero guesswork

Placement follows every stroke and corner.

ELECTRICAL AUTO
EnvironmentIndoor ◉ / Outdoor ○
Load108.0 W
DriverEV-SL-100-12 × 2
68% loaded✓ safe

The right driver, picked for you

Indoor or outdoor, sized with headroom.

PARTS BOM
96× Tetra MAX 71113$118.08
2× EV-SL-100-12$67.90
Total$185.98
Export BOM · CSV / PDF

The parts list writes itself

Your catalog's parts and prices — a clean BOM in one click.

MMS SPEC SHEET
Dimensioned PDF
module map + BOM
client sign-off ready

Spec sheets that win jobs

Quote the same afternoon, not next week.

THE ACTUAL APP — NOT A MOCKUP

See a real sign, populated and wired

app.mapmysign.com

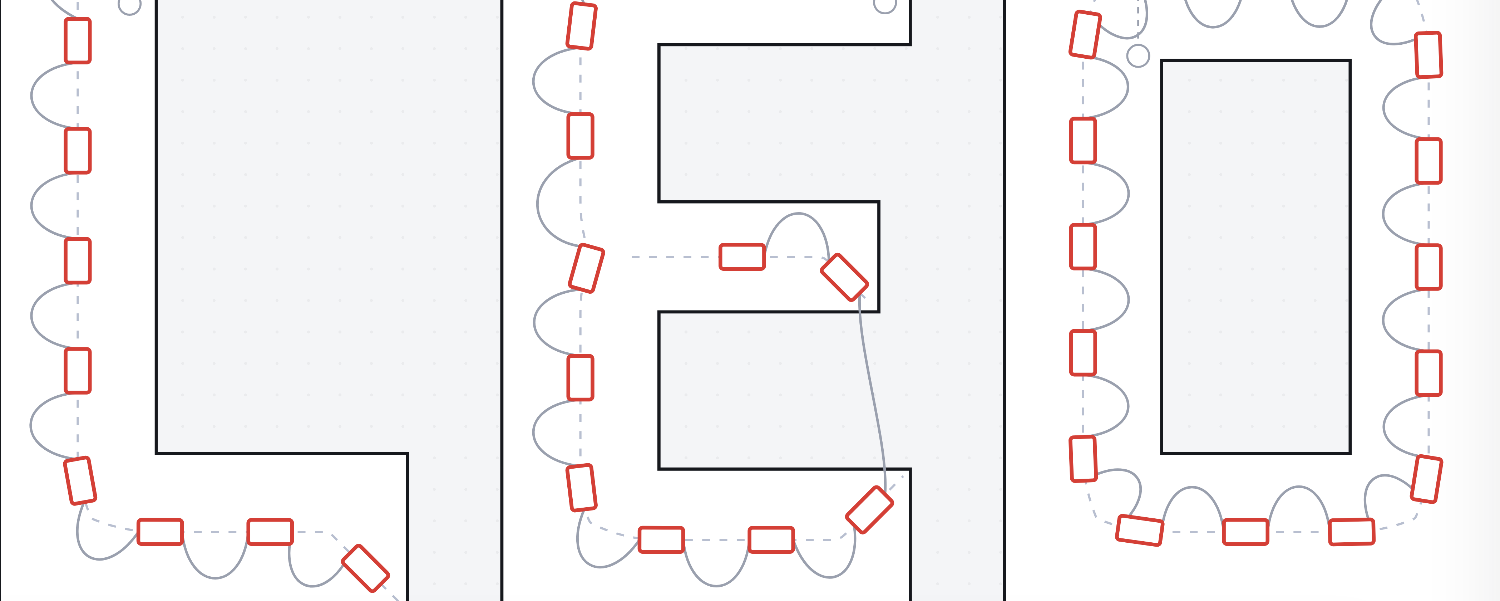

Close-up of a sample LED sign in the MapMySign editor: real LED modules rotated to follow each letter stroke, wired with service loopsOpen the designer →

A sample “LED” sign, up close — every module rotated to the stroke and wired, exactly as the engine placed it.

Quote faster. Win more jobs.

📐 Client-ready spec sheets💾 Every job saved🔁 Same rules, every bench📋 A BOM for every job

Questions, answered

Is it really free? +
Yes — the layout tool is free to use for sign makers. Design as many signs as you like, size the power, and export a parts list at no cost. You pay only for the LED parts you choose to order from your supplier. MapMySign is currently in beta, and designing signs is free for a limited time while the beta runs — so it’s a good moment to jump in.
Can I use my own modules & power supplies? +
Yes. Import your own LED modules and drivers — with their real spacing, wattage and pricing — and MapMySign lays out every sign using your catalog, so your quotes sell your product.
What files can I upload? +
PDF and vector artwork (SVG, AI, EPS). Letter outlines are detected automatically, and you can draw or adjust shapes right in the app.
How accurate are the module counts? +
Counts, spacing and wattage are computed from your actual artwork against per-module spacing rules — the same engine that runs behind Power Supply Mall, Wellforces and ENVO.
Do I need CAD experience? +
No. Upload artwork and the layout builds itself. Everything is adjustable with simple on-canvas controls — no CAD skills required.

Your next sign, engineered.

Start designing free

Your first layout in the next five minutes.
